Henco Underfloor Heating Products
Multilayer PEX Tubing
Henco PEX-AL-PEX
- 250', 300', 1000' rolls
- ASTM F1281 certified by NSF
- Aluminum layer provides 100% oxygen barrier
- P/N 250ft-R160212-US
- P/N 300ft-R160212-US
- P/N 1000ft-R160212-US
- 450' roll
- ASTM F1281 certified by NSF
- Aluminum layer provides 100% oxygen barrier
- P/N 450ft-R200216-US
- 500' roll
- ASTM F1281 certified by NSF
- Aluminum layer provides 100% oxygen barrier
- P/N 500ft-R252520-US
- 300' roll
- ASTM F1281 certified by NSF
- Aluminum layer provides 100% oxygen barrier
- P/N 300ft-R320326-US

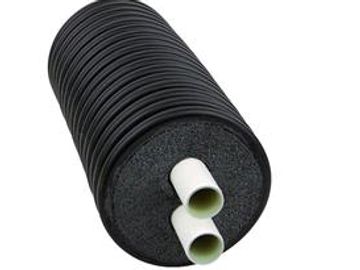

Flex insulated supply & return 1" tubing
COMING SOON
- Two 1" PEX-AL-PEX tubes insulated by closed cell PE foam and enclosed in outer conduit
- ASTM F1281 certified by NSF
- Underground use approved
- 330' roll
- P/N 1-FLEX32
Manifolds
- Includes flow meters, air vents, temperature gauges, and ball valves with seals
- Thermal actuator compatible
- 2 to 12 loops
- Expandable to 15 loops
- P/N UFH-0605MDK02-US-BV
- P/N UFH-0605MDK03-US-BV
- P/N UFH-0605MDK04-US-BV
- P/N UFH-0605MDK05-US-BV
- P/N UFH-0605MDK06-US-BV
- P/N UFH-0605MDK07-US-BV
- P/N UFH-0605MDK08-US-BV
- P/N UFH-0605MDK09-US-BV
- P/N UFH-0605MDK10-US-BV
- P/N UFH-0605MDK11-US-BV
- P/N UFH-0605MDK12-US-BV
- Includes flow meters, air vents, temperature gauges, and ball valves with seals
- Thermal actuator compatible
- 2 to 12 loops
- P/N UFH-0605MDSS02-US-BV
- P/N UFH-0605MDSS03-US-BV
- P/N UFH-0605MDSS04-US-BV
- P/N UFH-0605MDSS05-US-BV
- P/N UFH-0605MDSS06-US-BV
- P/N UFH-0605MDSS07-US-BV
- P/N UFH-0605MDSS08-US-BV
- P/N UFH-0605MDSS09-US-BV
- P/N UFH-0605MDSS10-US-BV
- P/N UFH-0605MDSS11-US-BV
- P/N UFH-0605MDSS12-US-BV
Installation Tools

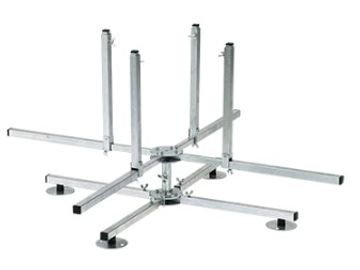

Decoiler
- For coils up to 2000'
- Can be disassembled
- P/N UFH-VLA
Kalispeed
- Hand deburring and beveling tool to prepare tubing for eurocones
- For 1/2", 5/8", 3/4" diameter tubing
- P/N KS-P162026
Beveling tools
- Debur and bevel multilayer pipes by hand or with an electric drill to prepare tubing for eurocones
- For 1/2", 5/8", 3/4" diameter tubing
- P/N KS-MSET1
Beveling tool
- Debur and bevel multilayer pipe with an electric drill to prepare tubing for eurocones
- Available for 1/2" or 5/8" tubing
- P/N KSM16 for 1/2"
- P/N KSM20 for 5/8"

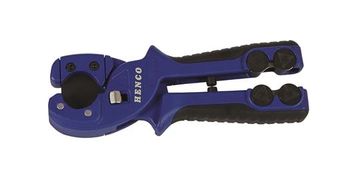

Guillotine cutter
- Straight-cut pipes without burrs and without tubing deformation
- Can also be used as a conduit cutter
- For 1/2" to 3/4" diameter tubing
- P/N IM1426PRESS

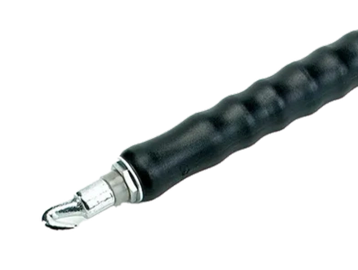

Braid hook
- Tying hook for installing rebar ties
- Use with plasticized steel ties
- P/N UFH-RAS-VLE
Plasticized steel rebar tie
- Used to affix tubing to mesh or rebar
- Available in bundles of 250 or 2500
- P/N UFH-RAS-BIND15A
- P/N UFH-RAS-BIND15B

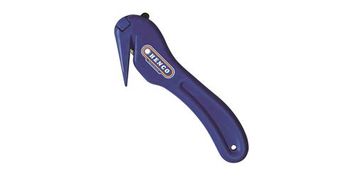

Box cutter
- Safe opening of pipe packaging
- Ensures no damage to tubing
- P/N SAFECUT

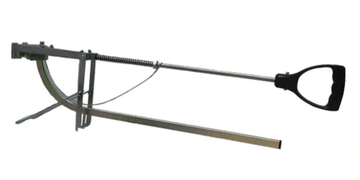

Foam board stapler
- Staples tubing to foam insulation
- P/N UFH-TACK
Foam board staples
- 2-3/8" staples for use in 2" foam board
- 300 staples/box
- P/N UFH-TACK-60
Clip rail
- Used to secure 1/2" tubing to walls, floors, ceilings, or foam board
- Includes adhesive strip
- 2" centers, 39.375" long
- P/N UFH-UP-16M1
External bending spring
- Slides over tubing to prevent kinks when forming tight bends
- Available for 1/2" or 5/8" tubing
- P/N BA-1612
- P/N BA-1620
Accessories
Ball valves
- Square brass ball valve set (1" NPT Female and 1" BSP Male) that includes a seal
- P/N UFH-BM-VN
Straight coupling
- Brass straight screw coupling connector to connect tubing or repair damaged loops
- P/N 2-2020-S
- P/N 2-1616-S
Nickel plated eurocone
- Brass screw couplings to connect tubing to manifolds
- P/N EK16-2
- P/N EK20-2
Manifold end cap with washer
- Manifold blanking plug with a seal
- P/N UFH-BS05-M
Automatic air vent
- Use with composite or stainless steel manifolds
- P/N UFH-MDK-AO
Composite manifold connector
- Use to connect composite manifolds and expand up to 15 loops
- P/N UFH-MDK-CON
Testcap
- Available for tubing measuring 1/2" and 5/8" in diameter
- Use for testing or keeping inside of pipe clean when not installed on a manifold
- P/N TESTPLUG16
- P/N TESTPLUG20
Testcap red
- Available for tubing measuring 1/2" and 5/8" in diameter
- Use for testing or keeping inside of pipe clean when not installed on a manifold
- P/N TESTPLUG16-RO
- P/N TESTPLUG20-RO

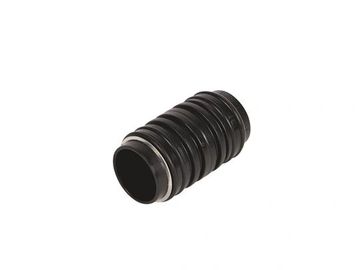

Protection sleeve
- Used when PEX is coming out of a slab and needs to be bent upwards towards a manifold
- Used for sleeves at expansion or control joints in concrete slabs
- 15.5" long with a slit for easy installation after tubing is installed
- P/N UFH-DH40

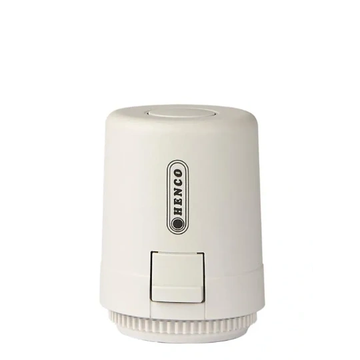

Thermal actuator
- Used to control individual loops on MDK and MDSS manifolds
- Available with 2 wire 24V cable or 4 wire 24V cable
- P/N CU-ACT-B24V
- P/N CU-ACT-24V-ES

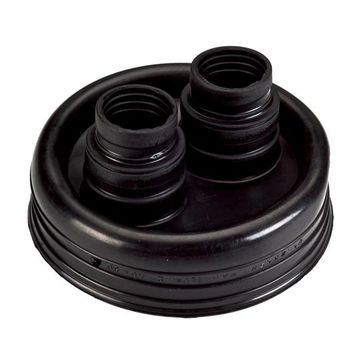

Flex end cap
COMING SOON
- Seals ends of flex insulated supply & return tubing
- P/N HFMAN
Heat diffusion plate
- Omega shaped aluminum heat transfer plate used for subfloor or joist radiant heat applications
- Scored every 5" for tool free sizing of the plate
- P/N UFH-DRY-GP100/2
Malco Products
Installation Tools
Foam board stapler
- Staples tubing to foam insulation
- P/N FBSN
Foam board staples
- 2-1/2" staples for use in 2" foam board
- 300 staples/box
- P/N FBS2BX
Other Products
Accessories
- Two-Channel stand-up bracket organizes and protects tubing at the poured floor surface
- Press fit together to match the number of manifold loops
- For 3/4" PEX pipe or smaller
- P/N PEX-PAL
- Tubing bracket designed for overpour applications
- Accommodates up to 1/2" PEX pipe
- P/N PEX-JR
PEX slab support elbow
- Used when PEX is coming out of a slab and needs to be bent upwards towards a manifold
- For 1/2" and 5/8" PEX pipe
- P/N 25490Z
PEX slab support 90 deg sweep
- Used when PEX is coming out of a slab and needs to be bent upwards towards a manifold
- Made from durable schedule 40 PVC
- For 1/2" PEX pipe
- P/N UA9AE
Air test with gauge
- Connects to manifold to pressurize a system with air to check for leaks
- 0-100psi
- Includes fittings to attach to 1" NPT
- P/N PRESSURETEST
